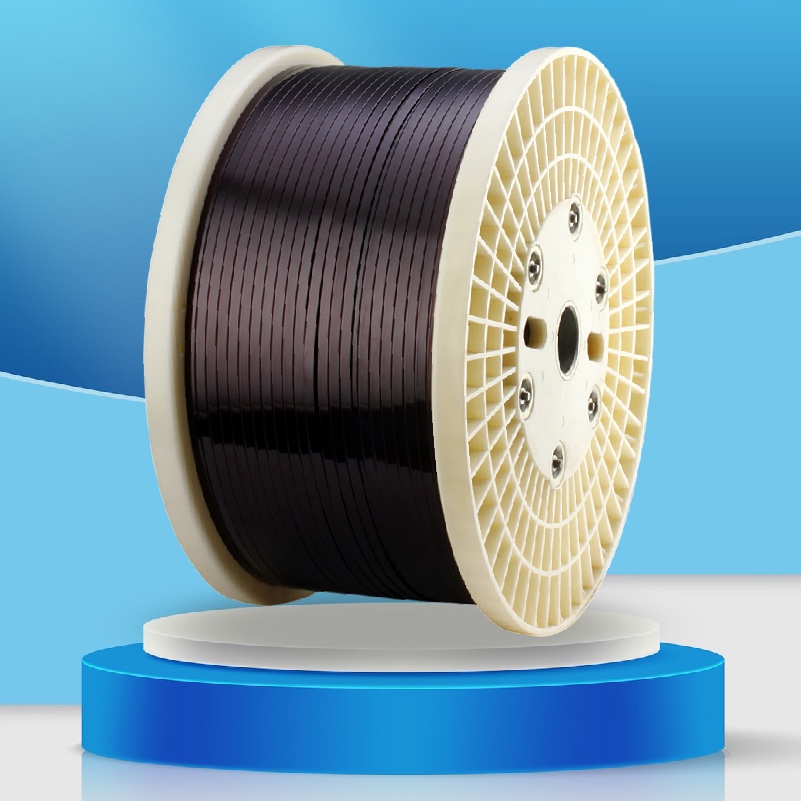

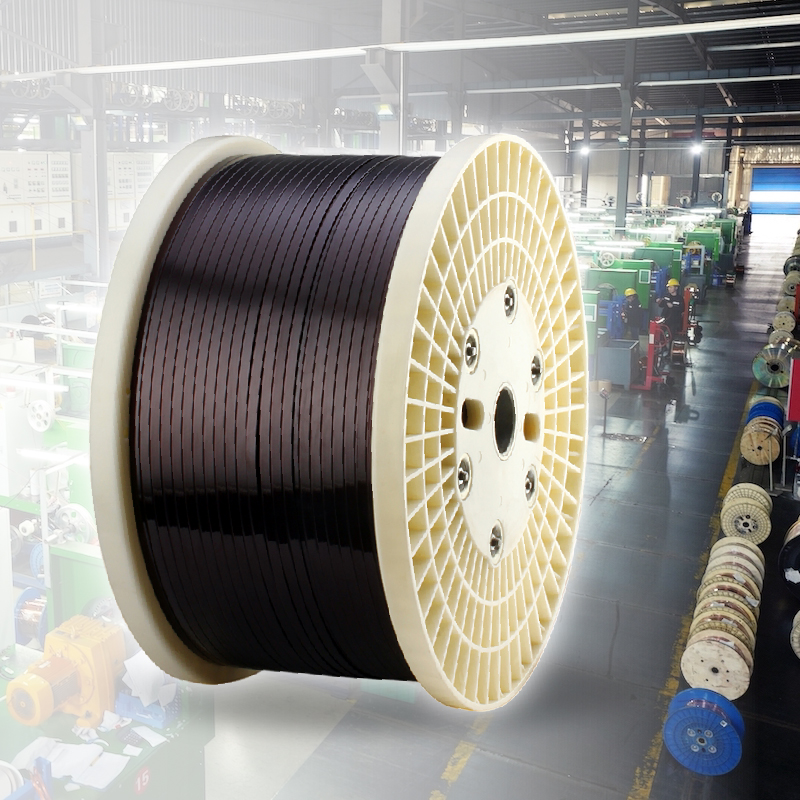

Enameled Rectangular Copper Wire

parameter:

Flat wire thickness: 0.80-5.60 mm

Flat wire width: 2.00-16.00 mm

Width/ thickness ratio: 1.4<w/t<8.0


Thermal Class: 130C, 155C, 180C, 200C, 220C, 240C

  • Description
  • Applications
  • Videos

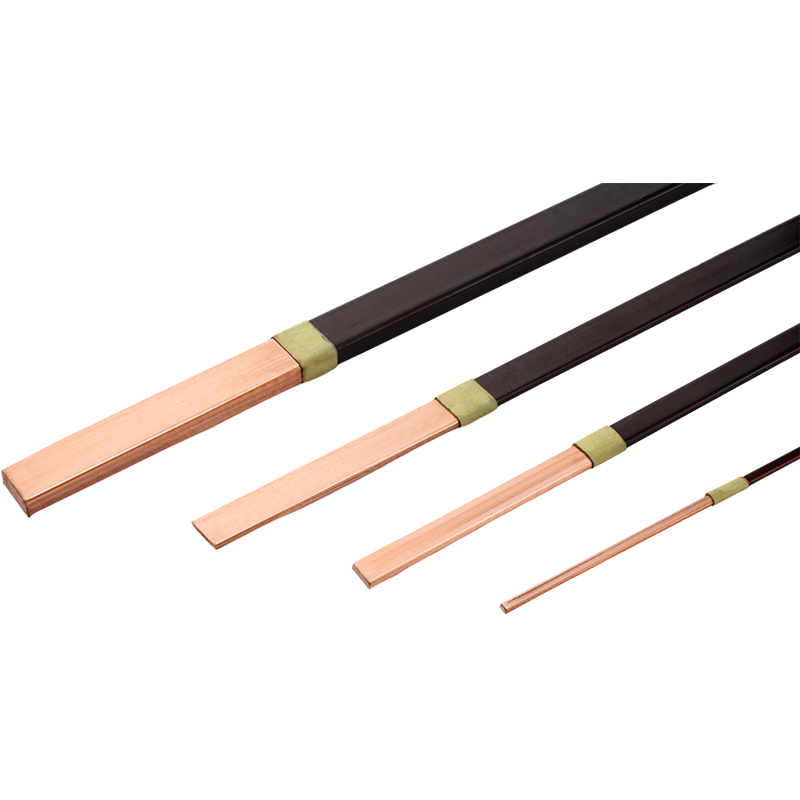

Enamelled Flat(Rectangular) Copper Wire is recognized for it's unique and beneficial qualities in electrical applications. We use the electrolytic copper ( Cu-ETP) with high purity(99.95%),which enables us to produce ultra fine wire. Enamelled flat copper wire available size ranges from 2-80 mm².


1.120 degree flat enamelled wire for oil-immersed transformer

2.130, 155, 180 degree flat enamelled wire are widely used in all kinds of magnet coil

3. 200 degree flat enamelled wire works constantly in high temperature

4. 240 degree flat enamelled wire for magnet coils of aviation, military and marine application


Flat wire thickness: 0.80-5.60 mm

Flat wire width: 2.00-16.00 mm

Width/ thickness ratio: 1.4<w/t<8.0


Product NameQZ-130
PEW130
QZGB-155
PEW155
QZ-180
EIW180
Q(ZY/XY)-200
AI/EIW200
QY -240
AIW240
StandardIEC60317-16
GB/T7095.7
IEC60317-16
GB/T7095.3
IEC60317-28
GB/T7095.4
MW 36
IEC60317–29
GB/T7095.6
MW 20
IEC60317-47
GB/T7095.5
Thermal Class130℃155℃180℃200℃240℃
Enamel Base CoatPolyesterModified PolyesterPolyester-ImidePolyester-ImidePolyimide
Enamel Top Coat

-Polyamide-Imide
Cross Section Range2 – 80mm22 – 80mm2 2 – 80mm22 – 80mm22 – 80mm2
Range of insulation thickness

IEC 60317-0-2       G1,0.06-0.11mm

G2,0.12-0.17mm

IEC 60317-0-2       G1,0.06-0.11mm

G2,0.12-0.17mm

IEC 60317-0-2       G1,0.06-0.11mm

G2,0.12-0.17mm

IEC 60317-0-2       G1,0.06-0.11mm

G2,0.12-0.17mm

IEC 60317-0-2       G1,0.06-0.11mm

G2,0.12-0.17mm

Performance

●excellent bending property

●high flexibility of the enamel

●good resistance to abrasion

●high mechanical property

●higher thermal property

●excellent bending property

●high flexibility of the enamel

●good resistance to abrasion

●high mechanical property

●higher thermal property

●suitable for windings that are subjected to constantly high  temperature and mechanical stress

● good chemical  resistance

●excellent thermal resistance

●suitable for windings that are subjected to constantly high temperature and mechanical stress

●good chemical resistance

●good resistance to refrigerant and freon

●excellent thermal resistance suitable for any electric equipments that are  constantly exposed to high working     temperature

●outstanding mechanical and chemical property

●good performance against radiation

Application

●dry & oil-immersed transformer

●electrical equipment

●dry & oil-immersed transformer

●electrical equipment

●winding of high and low voltage DC/AC motor

●magnet coil

●dry & oil-immersed transformer

●winding of high and low voltage DC/AC motor

●magnet coil

●dry & oil-immersed transformer

●automobile coil

●train coil

●winding with service temperature up to 220°C

●motor and generator for aviation and marine application

●nuclear industry

●winding requiring high reliability

Heat shock155℃175℃200℃220℃260℃

Transformer, Generator, Motor,Reactor, Welder, Electric Equipment
