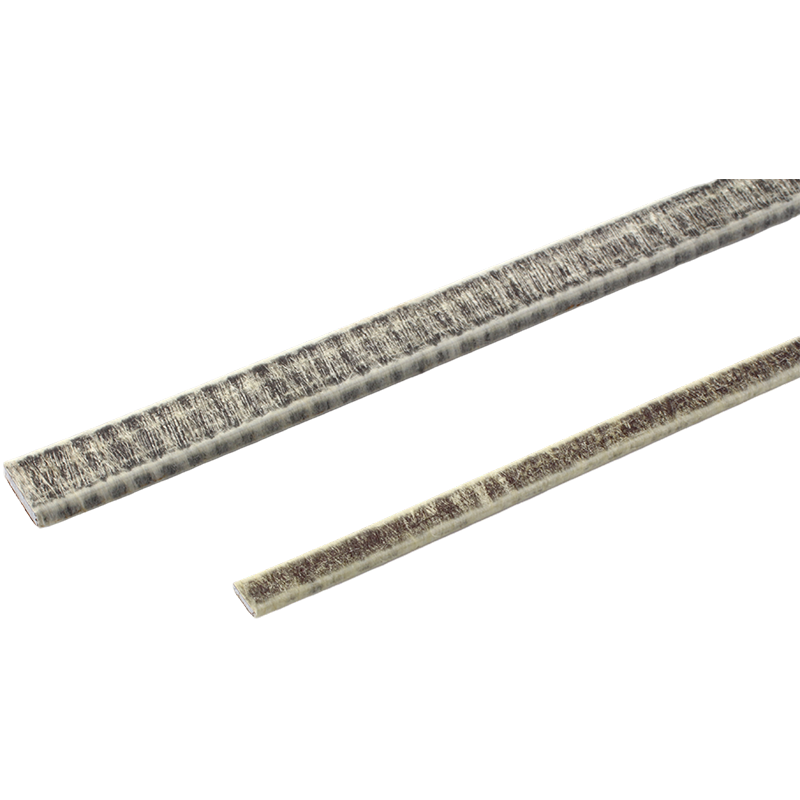

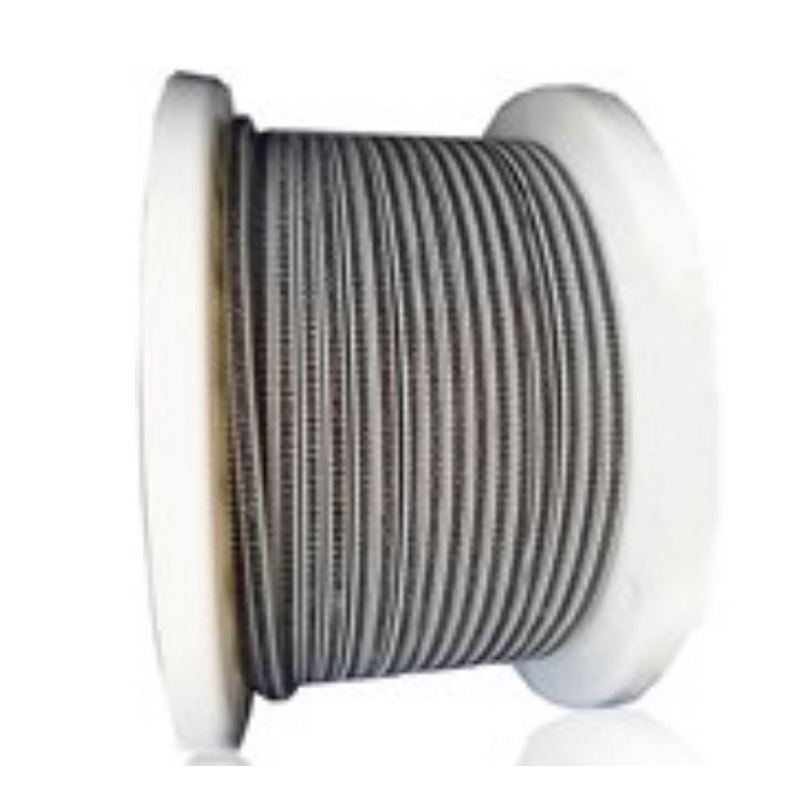

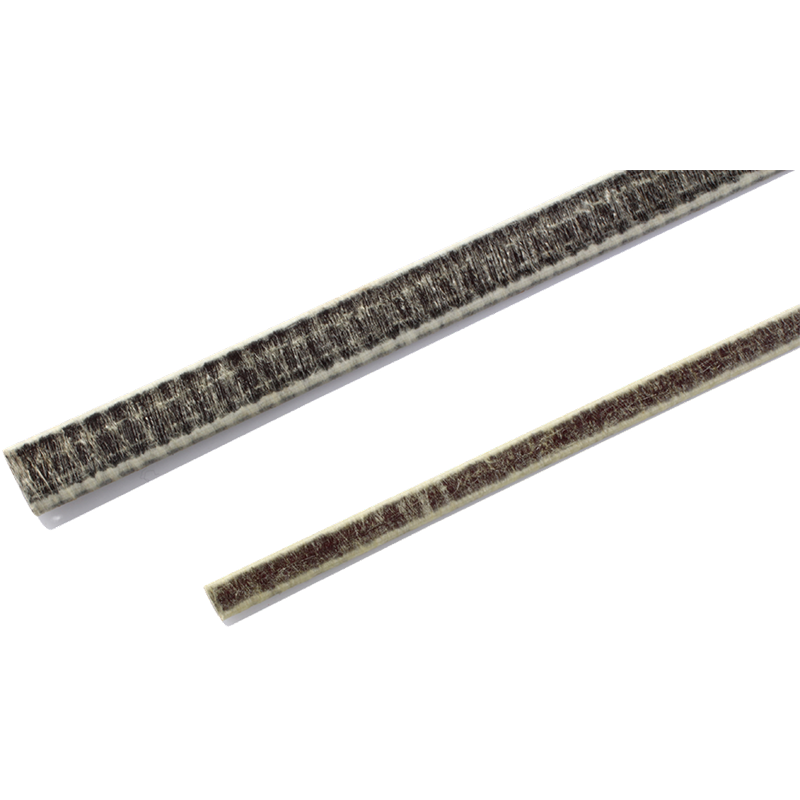

1.Introduction: Fibreglass wrapped enamelled wire is made by enamelled copper or aluminum wire wrapped fibreglass. The product temperature rating are 130, 155, 180, and 200, and the product is widely used in generators, motors, motors and other similar electrical equipment.
2.Standard:GB/T7672—2008
3.Production Range:
Aluminum Rectangular Wire
Narrow side a: 1.00mm—6.30mm
Width side b: 3.00mm—25.00mm
Copper Rectangular Wire
Narrow side a: 0.80mm—5.60mm
Width side b: 2.00mm—16.00mm
Copper or Aluminum Round Wire
Diameter: Φ1.7-Φ6.0mm
If specification is out of range, please don't hesitate to contact us.
4.Material:
Aluminum rectangular wire should conform to GB5584.3-2009, the resistivity (20℃) is no more than 0.0280Ωmm²/m. Copper rectangular wire should conform to GB5584.2-2009, the resistivity (20℃) is no more than 0.01724Ωmm²/m. Insulation thickness and breakdown voltage are as follows,
Thickness of width and narrow sides should conform to the table as below:
Conductor width side nominal size/mm | Insulation thickness (mm) | ||||||
Single Fiberglass wrapped enamelled wire Grade 2GL1 | Double Fiberglass wrapped enamelled wire Grade 2GL2 | ||||||
＞ | ≤ | Min. | Nom. | Max. | Min. | Nom. | Max. |
| - | 3.15 | 0.23 | 0.29 | 0.35 | 0.35 | 0.42 | 0.49 |
3.15 | 6.30 | 0.25 | 0.31 | 0.37 | 0.38 | 0.45 | 0.52 |
6.30 | 12.50 | 0.27 | 0.34 | 0.41 | 0.43 | 0.50 | 0.57 |
12.50 | 16.00 | 0.30 | 0.38 | 0.46 | 0.46 | 0.54 | 0.62 |
When the wide and narrow sides of the fibreglass wrapped enamelled wire bend on the round rod, the diameter of the rod have to follow the table blew, the insulation should not crack.
| Bending | Round bar diameter | |
| Width Side | ≤ 8.00 | 10*Width Side Size |
| Width Side | ＞8.00 | 15*Width Side Size |
| Narrow Side | All specifications | 10*Narrow Side Size |
The breakdown voltage should conform to the table below:
Insulation type | Min.Breakdown Voltage/V | |
2-level insulation thickness of enameled wire | Single fibreglass wrapped wire Grade 2GL1 | 1500 |
Double fibreglass wrapped wire Grade 2GL2 | 2000 | |
