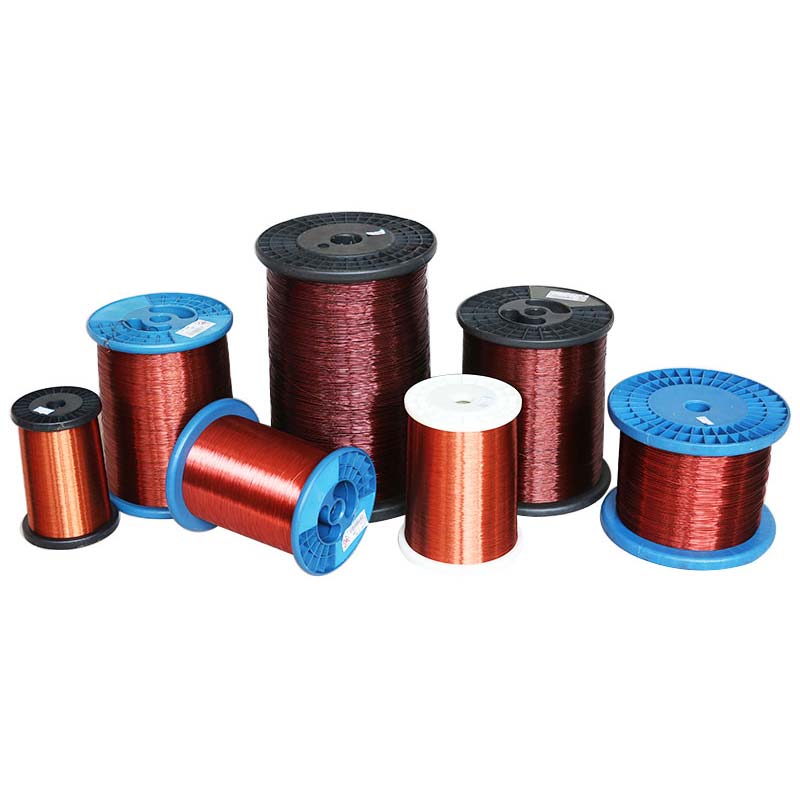

Enameled Round Aluminum Wire

parameter:

Round Wire Diameter Range: 0.20-8.0mm

                                                  1-36 SWG

                                                  1-32 AWG


Thermal Class: 130C, 155C, 180C, 200C, 220C, 240C

  • Description
  • Applications
  • Videos

Enamelled round aluminum wire is mainly used as an electrical conductor wherever coils are in motion.It's available size in diameters from 0.20mm to 8.0mm(SWG1-36,AWG1-32) with different insulation, such as Polyurethane, Polyester, Polyesterimide, Polyimide etc..


The enamelled round aluminum wire reach to production standards: IEC60317,NEMA MW1000/JIS C3202.


1. 120 degree round enamelled wire for oil-immersed transformer

2. 130, 155, 180 degree round enamelled wire are widely used in all kinds of magnet coil

3. 200 degree round enamelled wire works constantly in high temperature

4. 240 degree round enamelled wire for magnet coils of aviation, military and marine application


Round Wire Diameter Range: 0.20-8.0mm(SWG1-36,AWG1-32)

Product NameQZ-130
PEW130
QZGB-155
PEW155
QZ-180
EIW180
Q(ZY/XY)-200
AI/EIW200
QY -240
AIW240
StandardIEC60317-3
GB/T6109.7
GB /T23312.3
IEC60317-3
GB/T6109.7
GB /T23312.3
MW 30
IEC60317 – 8
GB/T6109.5
GB /T23312.5
MW 35
IEC6031713
GB/T6109.20
GB/T23312.7
MW 16
IEC60317-46
GB/ T6109.22
Thermal Class130℃155℃180℃200℃240℃
Enamel Base CoatPolyesterModified PolyesterPolyester-ImidePolyester-ImidePolyimide
Enamel Top Coat

-Polyamide-Imide
Cross Section Range0.2-6.5mm0.2-6.5mm0.2-6.5mm0.2-6.5mm0.2-6.5mm
Range of insulation thicknessIEC 60317-0-1
GB6108.2-85
IEC 60317-0-1
GB6108.2-85
IEC 60317-0-1
GB6108.2-85
IEC 60317-0-1
GB6108.2-85
IEC 60317-0-1
GB6108.2-85
Performance

1.excellent bendingproperty
2.high flexibility of the enamel
3.good resistance to abrasion
4.high mechanical property

1.higher thermalproperty
2.excellent bendingproperty
3.high flexibility of the enamel
4.good resistance to abrasion
5.high mechanical property

1.higher thermal property
2.suitable for windings that are subjected
to constantly high temperature and mechanical stress
3.good chemical resistance

1.excellent thermalresistance
2.suitable for windings that are subjected to constantly high temperature and mechanical stress
3.good chemical resistance
4.good resistance to refrigerant

1.excellent thermal resistance suitable for any electric equipments that are constantly exposed to high working temperature
2.outstanding mechanical and chemical property
3.good performance against radiation

Application

1.dry & oil-immersed transformer
2.electrical equipment

1.dry & oil-immersed transformer
2.electrical equipment

1.winding of high and low voltage DC/AC motor
2.magnet coil
3.dry & oil-immersed transformer

4.winding of high and low voltage DC/AC motor
5.magnet coil
6.dry & oil-immersed transformer
7.automobile coil8.train coil

1.winding with service temperature up to 220°C
2.motor and generator for aviation and marine application
3.nuclear industry
4.winding requiring high reliability

Heat shock155℃175℃200℃220℃300℃

Transformer, Generator, Motor,Reactor, Welder, Electric Equipment
